Your microwave stopped working and troubleshooting points to a failed transformer. But now comes the tricky part – finding the right replacement transformer for your specific microwave make and model. With transformers ranging from 1,500 to 2,500 volts, choosing the wrong electrical specs can prevent your appliance from powering on or even cause dangerous malfunctions.
Navigating your microwave’s technical electrical requirements to locate the ideal transformer can be daunting. In this post, we’ll explain how to identify your existing transformer type – high voltage, filament, or magnetron. You’ll learn how to match voltage, amperage, form factor and connectors to your model’s needs. We’ll also cover whether you can substitute universal or aftermarket transformers.
With the right transformer replacement, you’ll have your microwave reheating and defrosting in no time. Let’s upgrade your electrical knowledge so you can source the perfect transformer part for seamless repairs!
The best way to find out which microwave transformer you need is to check the label or manual of your microwave and look for the specifications of the transformer, such as the input and output voltage, current, frequency, and power rating.
In this post, we will explain the basics of microwave transformers, how they work, and how to choose the right one for your microwave. We will also answer some common questions that you may have about microwave transformers and their safety.
What are Microwave Transformers and How Do They Work?

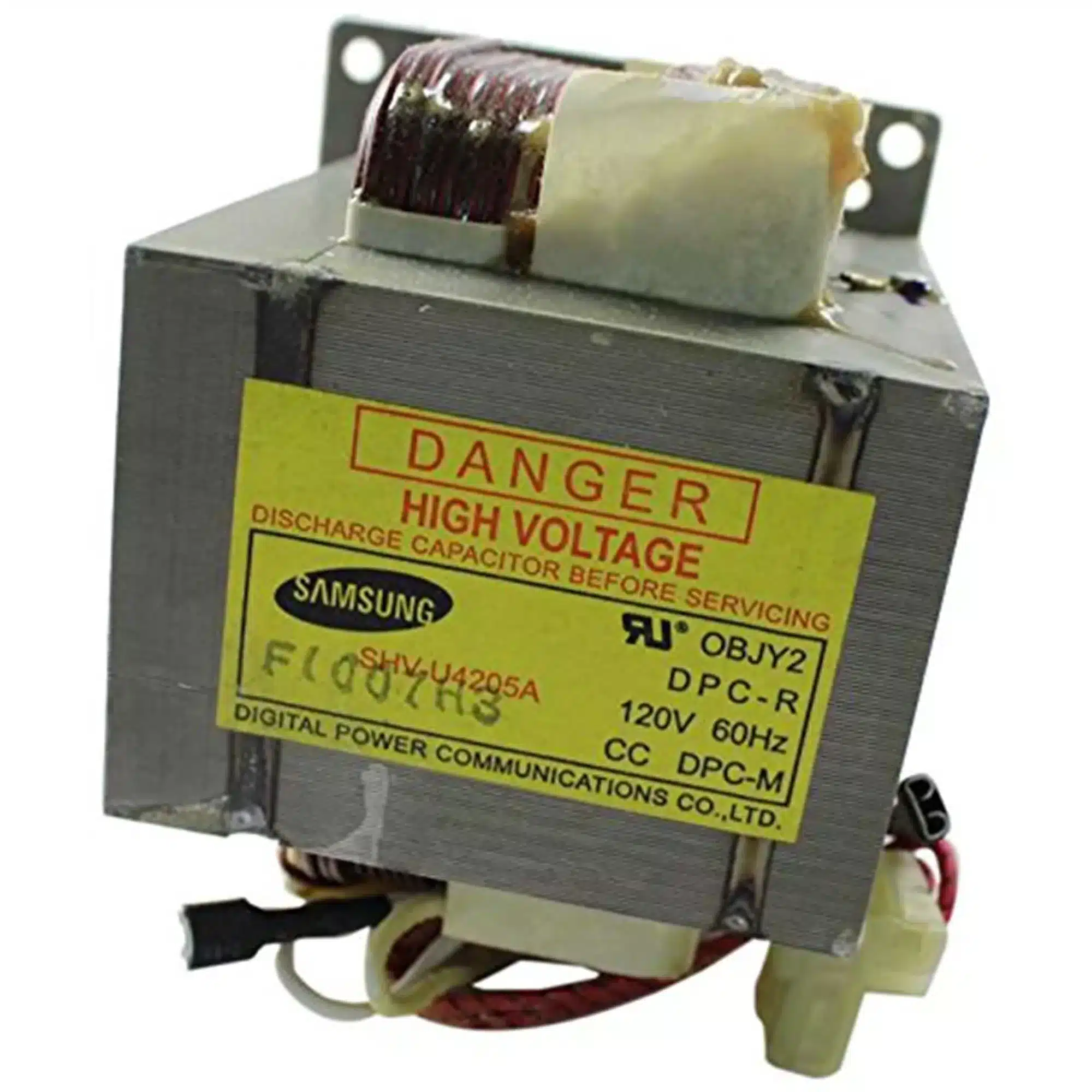

A microwave transformer is a type of step-up transformer that increases the voltage of an AC power source. A typical microwave transformer has three windings: a primary winding, a secondary winding, and a filament winding. The primary winding is connected to the AC power source, such as your wall outlet, and receives a low-voltage AC input. The secondary winding is connected to the magnetron and delivers a high-voltage AC output. The filament winding is connected to the filament of the magnetron and provides a low-voltage AC output to heat up the filament.
The microwave transformer works by using electromagnetic induction. When an AC current flows through the primary winding, it creates a magnetic field that induces an AC voltage in the secondary winding. The ratio of the number of turns in the primary and secondary windings determines how much the voltage is increased or decreased. For example, if the primary winding has 100 turns and the secondary winding has 2000 turns, then the voltage is increased by a factor of 20. The filament winding has fewer turns than the primary winding and produces a lower voltage than the input.
The high-voltage AC output from the secondary winding is then fed to the magnetron, which converts it into microwaves. The microwaves are then directed to the cooking chamber through a waveguide and a stirrer fan. The microwaves interact with the water molecules in the food and cause them to vibrate rapidly, generating heat and cooking the food.
How to Choose the Right Microwave Transformer for Your Microwave?
The right microwave transformer for your microwave depends on several factors, such as:
- The type of your microwave: There are different types of microwaves, such as solo, grill, convection, or combination microwaves. Each type may have different power requirements and specifications for the transformer.
- The size of your microwave: The size of your microwave determines how much power it needs to operate and how much space it has for the transformer. Larger microwaves may need higher-power transformers than smaller ones.
- The model of your microwave: Different models of microwaves may have different designs and features that affect the transformer. For example, some models may have sensors or timers that require additional circuits or components in the transformer.
- The specifications of your microwave: The most important specifications to look for when choosing a microwave transformer are:
- The input voltage: This is the voltage that your wall outlet provides to your microwave. It may vary depending on your location and electrical system. For example, in the UK, the standard input voltage is 230 V AC.
- The output voltage: This is the voltage that your transformer delivers to your magnetron. It may range from 2000 V to 5000 V AC depending on your microwave.
- The current: This is the amount of electric charge that flows through your transformer per unit time. It is measured in amperes (A) or milliamperes (mA). Higher currents mean higher power output.
- The frequency: This is the number of cycles per second that your AC power source alternates between positive and negative polarity. It is measured in hertz (Hz). Most microwaves use a frequency of 50 Hz or 60 Hz depending on your location and electrical system.
- The power rating: This is the amount of energy that your transformer can transfer per unit time. It is measured in watts (W) or kilowatts (kW). Higher power ratings mean faster cooking times.
You can find these specifications on the label or manual of your microwave or on the label or casing of your existing transformer. You can also use a multimeter or an oscilloscope to measure them if you have access to them.
When choosing a new microwave transformer, you should make sure that it matches or exceeds the specifications of your microwave and your existing transformer. You should also check the physical dimensions and the mounting style of the transformer to ensure that it fits in your microwave. You can buy microwave transformers online or from appliance stores or repair shops. You can also salvage them from old or broken microwaves, but you should be careful and follow safety precautions when doing so.
FAQs About Microwave Transformers
Here are some common questions that you may have about microwave transformers and their answers:
- Are microwave transformers dangerous? Microwave transformers can be dangerous if handled improperly or without adequate protection. They can produce high-voltage AC currents that can cause electric shocks, burns, or even death. They can also generate strong magnetic fields that can interfere with pacemakers, electronic devices, or metal objects. You should always unplug your microwave and discharge the capacitor before working on the transformer. You should also wear gloves, goggles, and insulated tools when handling the transformer. You should never touch the wires or terminals of the transformer when it is powered on or connected to the microwave.
- How do I test a microwave transformer? You can test a microwave transformer by using a multimeter or an oscilloscope. You should first disconnect the transformer from the microwave and the power source. Then, you should set your multimeter to measure resistance or continuity and check the continuity of each winding by touching the probes to the terminals. If there is no continuity, it means that the winding is broken or shorted. You should also check the resistance of each winding by touching the probes to the terminals. If the resistance is too high or too low, it means that the winding is damaged or faulty. You should then set your multimeter to measure voltage or current and connect the transformer to a power source. You should measure the input voltage and current by touching the probes to the primary terminals and compare them to the specifications of your transformer. You should also measure the output voltage and current by touching the probes to the secondary and filament terminals and compare them to the specifications of your magnetron. If there is a significant difference between the measured values and the expected values, it means that the transformer is not working properly.
- How do I replace a microwave transformer? You can replace a microwave transformer by following these steps:
- Unplug your microwave and discharge the capacitor.
- Remove the screws or clips that secure the cover of your microwave and take off the cover.
- Locate the transformer inside your microwave. It is usually a large metal box with wires attached to it.
- Disconnect the wires from the terminals of the transformer. You may need to cut them or use a soldering iron to remove them.
- Unscrew or unclip the mounting brackets that hold the transformer in place and remove the transformer from your microwave.
- Install a new transformer that matches or exceeds the specifications of your old one. Make sure that it fits in your microwave and that it has compatible mounting brackets.
- Connect the wires to the terminals of the new transformer according to their color codes or labels. You may need to strip them or use a soldering iron to attach them.
- Secure the new transformer in place with screws or clips.
- Replace the cover of your microwave and plug it in.
- Test your microwave by heating some water or food.
Conclusion
Microwave transformers are essential devices that make your microwave work by converting low-voltage AC power to high-voltage AC power for your magnetron. They come in different types, sizes, and models depending on your microwave. To choose the right one for your microwave, you need to check the specifications of your microwave and your existing transformer and find a compatible one online or from appliance stores or repair shops. You also need to follow safety precautions when testing, replacing, or salvaging microwave transformers.
We hope this post has helped you understand more about microwave transformers and how to choose them for your microwave. If you have any questions or comments, please feel free to leave them below.
